Cryometrix MB-90 Blast/Thaw Freezer

Cryometrix MB-90: The Ultimate Compact Blast Freezer

Accelerate and automate freeze-thaw processes with an affordable compact unit

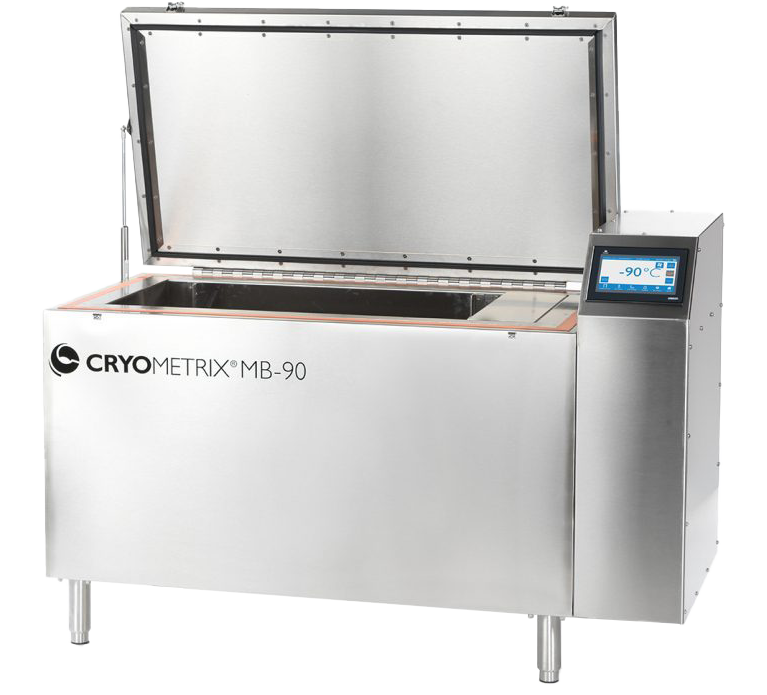

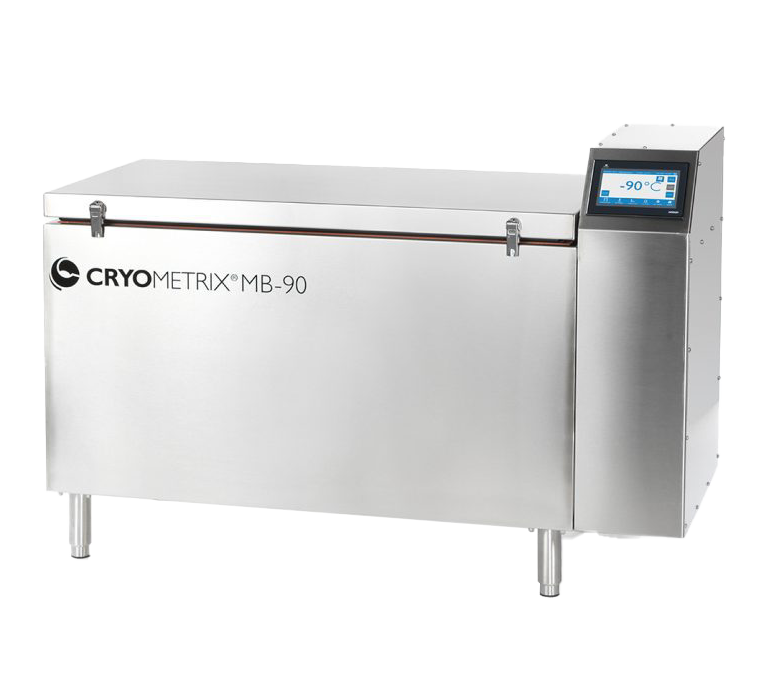

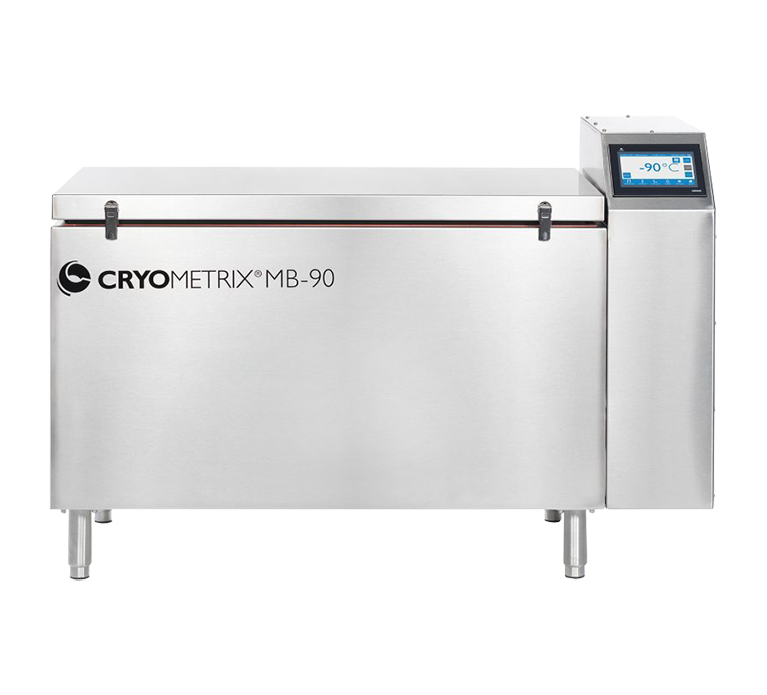

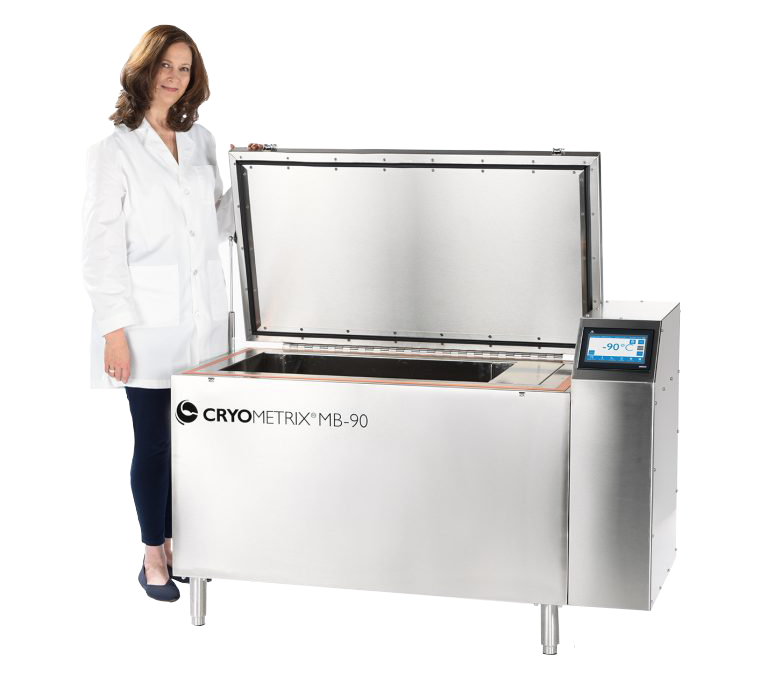

Experience lightening-fast freezing, reduced LN2 consumption, and a compact footprint like never before with the Cryometrix MB-90 Chest Blast Freezer (4.2 cu ft storage). Blast freeze your products with exceptional speed and efficiency, elevating your throughput and ensuring top-quality results.

Unleash unprecedented freezing power

  • Ambient to -90°C in 3 minutes
  • No pre-chill necessary – Simply load freezer and begin freeze cycle from room temperature
  • 4.2 cu ft of internal storage
  • 27 in x 56 in lab space footprint

Facilitate experimenting with temperature profiles

With its compact design, this mini blast freezer revolutionizes experimentation by allowing you to explore adjustable temperature profiles for rapid freeze runs like never before. And because the freezing process can be replicated by its big brother, the B-90 blast freezer, you can easily move testing freeze runs into a production setting.

Blast freeze and thaw your products with ease

  • Temperature adjustable from 40°C to -90°C
  • Reach low temperatures in as little as 3 minutes
  • Software packages for applications requiring 21 CFR Part 11 compliance
  • Built-in data logging software
  • Integration into your SCADA system

MB-90 Blast

Features
Access / Setpoint Security

3 Standard User Security Levels

Up to 100 Individual Users

On-Board Datalogging

Standard

Manual CSV export of data logging

Warranty

20 Years, Cooling System for Parts
Virtual technical support;
(Includes Control Valve Replacment)

Performance
Temperature Range

40°C to -90°C

Peak Variation from Setpoint

± 3°C

Door Opening Recovery (from -80°C, doors open for 3 minutes)

1 minute

Pull down from ambient to -80°C (Empty Payload Bay Approx.)

6 minutes @ 100 psi pressure of LN2

LN2 System usage during rampdown only (approx.)

0.5 gals of LN2/min

LN2 System usage during Steady-State (approx.)

0.3 gals of LN2/hr

Exterior
Exterior Surfaces

304 Stainless Steel

Exterior Depth

27 in (686 mm)

Exterior Width

56.5 in (1435 mm)

Exterior Height

39 in (990 mm)

Payload Bay Dimensions
Interior Surfaces

304 Stainless Steel

Depth

17 in (432 mm)

Width

26 in (660 mm)

Height

16.5 in (419 mm)

Capacity

4.2 cu ft (120 L)

3 L Bag Capacity

6 laid flat (2 on each level)

6 L Bag Capacity

3 laid flat

12 L Bag Capacity

None

Electrical
Voltage*

120VAC

Frequency*

60 Hz

Plug Type*

NEMA 5-20

Amperage*

6.5 A peak in Freeze mode.
16 A in Thaw mode.

LN2 System
LN2 Supply Pressure Range

30 – 100 psi

LN2 Inlet Type

CGA 295 Male Fitting

Certifications
Product

CE compliant

Federal Drug Administration

*Optional IPC upgrade – 21 CFR Part 11 Compliance package

Manufacture

Designed and Manufactured in the USA

For More Information or To Purchase
Contact Us Today

Unleash unprecedented freezing power

Experience reliability and convenience of blast freezing and thawing with the Cryometrix MB-90

Features/Benefits
Features
Benefits
Compressor-free freezing
  • Minimizes service interruptions / downtime
  • Uses up to 90% less energy than mechanical units
  • Fastest door open recovery in industry
  • Reduces need for maintenance or repairs when compared to mechanical freezers
  • No HVAC required
  • No refrigerant chemicals, oils, or CFCs
  • Completely silent operation
100% stainless steel interior and exterior
  • Fast, convenient access to stored materials
  • Easy cleaning and sterilization

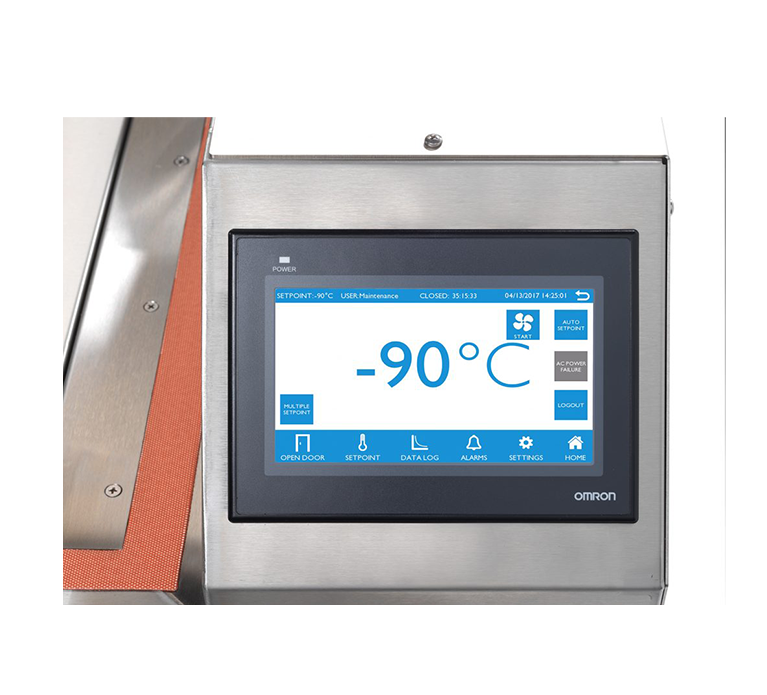

Secure programmable controls with touch screen interface
  • Freezing processes and user operation logging
  • Simplifies management, security, monitoring
Blast thawing capabilities
  • Available options to allow you to thaw product inside the same unit

Dimensions

  • Exterior: Height 39 in. x depth 27 in. x width 56 in.
  • Interior: Height 16.5 in. x depth 17 in. x width 26 in.
  • Storage capacity: 4.2 cu ft storage volume
  • Can be placed against wall, or corner on all sides
  • No ventilation space needed

Usage

  • Temperature range 40°C to -90°C
  • Reach temperatures from ambient in 3 minutes
  • Max LN2 usage rate approx. 0.5 gals of LN2 per minute
  • Steady state LN2 approx. 0.3 gals of LN2 per

Try It Before You Buy It

Cryometrix offers an in-house experimental test setup and run of your unique freezing process needs. Contact us today to design and test your process prior to purchasing a unit. Receive customized blast freezing data in the form of experimental test runs. We will guide you through the test setup and deliver testing results and suggestions for optimal setup, productivity, and results. Contact info@cryometrix for more information on experimental runs designed by you.

For More Information or To Purchase
Contact Us Today

Powerful Innovation

Next-Gen Liquid Nitrogen Tech: Cryometrix freezers don’t use traditional mechanical compressors. Mechanical compressors utilize refrigerants, an example being freon, to produce cold temperatures. These are noisy and use large amounts of electricity.

Low Energy Usage

  • Cryometrix freezers use 7x less electricity than comparable lab freezers.
  • LN2 operates on pressure and requires no electricity to function, enabling it to function without power in an emergency situation.

Extreme Reliability

  • Cryometrix freezers don’t require HVAC systems to cool the ambient temperature in order to operate. They can operate in any ambiance, and actually cool the environment around it.
  • There are practically no moving parts on Cryometrix freezers, making them last up to 4 times as long as comparable lab freezers with hardly any maintenance.

Easily Expandable

  • Cryometrix freezers consume little electricity, enabling the customer to add units to their facility with zero electrical complications.
  • The effective footprint is below 8 square feet and little to no space is needed on the sides, easily fitting into any facility.

Extreme Versatility

  • Many blast freezers use metal plates to freeze product, severely limiting their use to thin and flat objects. Others inject LN2 directly into the payload bay, risking harmful exposure to the product.
  • The B-90 Blast Freezer uses liquid nitrogen in an efficient and powerful manner, allowing it to blast freeze anything that can fit inside it.

20 Year Warranty: Cryometrix freezers automatically come with a 20-year warranty on their cooling systems.

Environment Friendly

Clean Emissions: Cryometrix freezers only emit nitrogen outside your building, which already makes up over 75% of the Earth’s atmosphere.

Long-Lasting: The cooling system of Cryometrix freezers are built to last 20 years, with a warranty to cover it.

Cost Efficient

Space Efficient: Cryometrix freezers have the smallest footprint for freezing volume, costing less in floor space and allowing you to fit more units in your current space.

Simple Design: The upright design allows for quick and convenient access, reducing labor costs and risks.

Low Energy Costs

  • LN2 technology uses much less electricity than traditional compressor-based technologies.
  • Cryometrix freezers don’t need energy intensive HVAC systems to operate efficiently.

Greater Throughput: The increased capability of Cryometrix freezers allows faster turnaround times and thus greater profits.

Complete Safety

Closed Nitrogen System

  • There is zero contact between LN2 and the operator or product.
  • LN2 storage is simple and completely autonomous.

Unreactive: Nitrogen isn’t flammable or explosive like many refrigerants used in compressor-based technologies.

Easy Cleaning: The 100% stainless steel interior/exterior of the freezer is easy to clean without harsh industrial chemicals.

Sample Integrity

Self-contained System: No LN2 is exposed to the sample, maintaining the samples integrity.

Data-Logging: Cryometrix freezers automatically track temperature and other useful data.

Emergency Valve: Cryometrix freezers have redundant manual valves that can be used during a power outage to maintain the temperature in the payload bay.

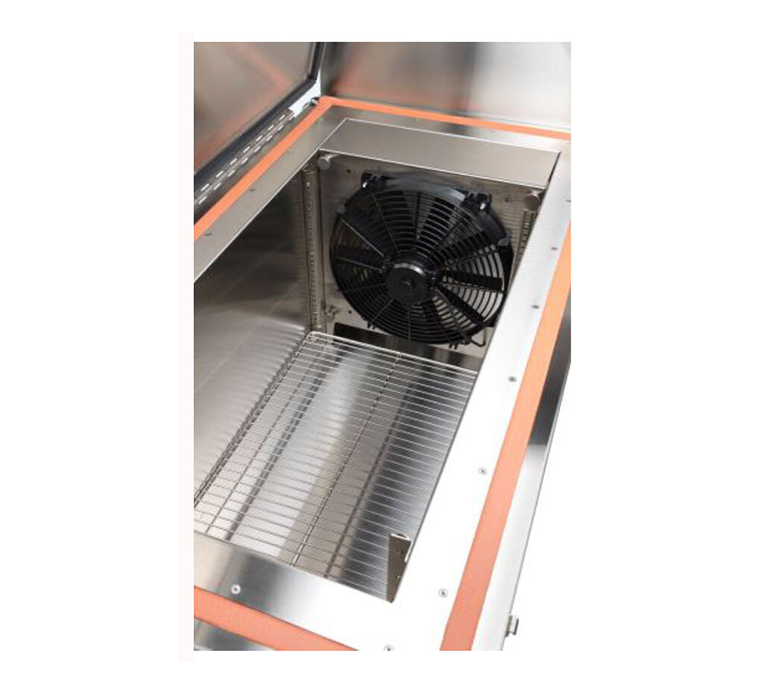

Temperature Uniformity: Multiple fans create a high flux of airflow to maintain uniform temperature within the payload bay.
