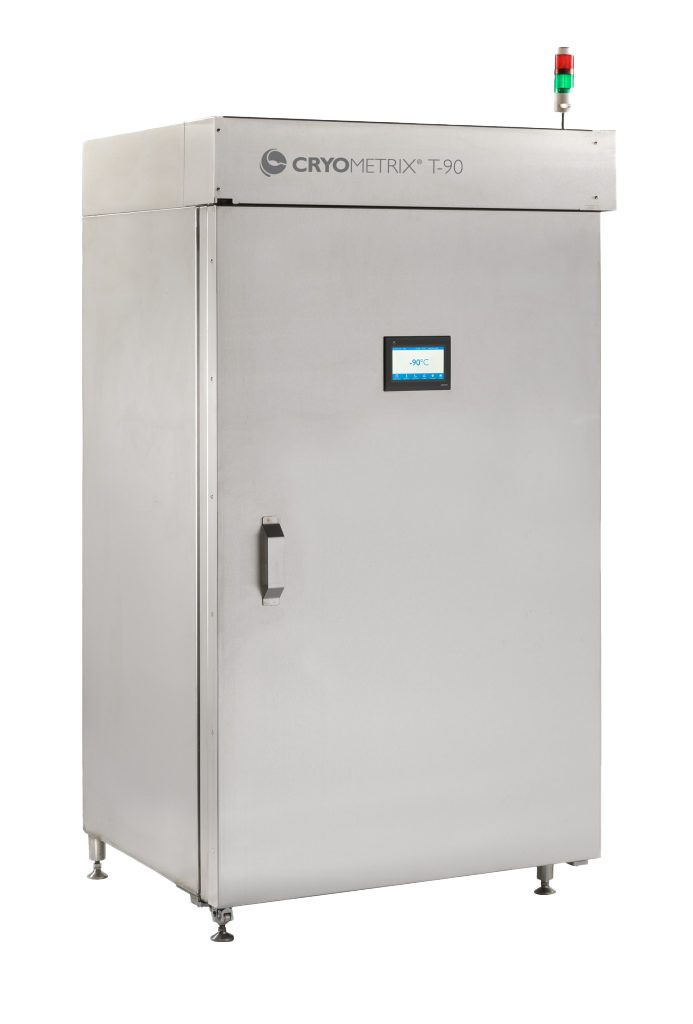

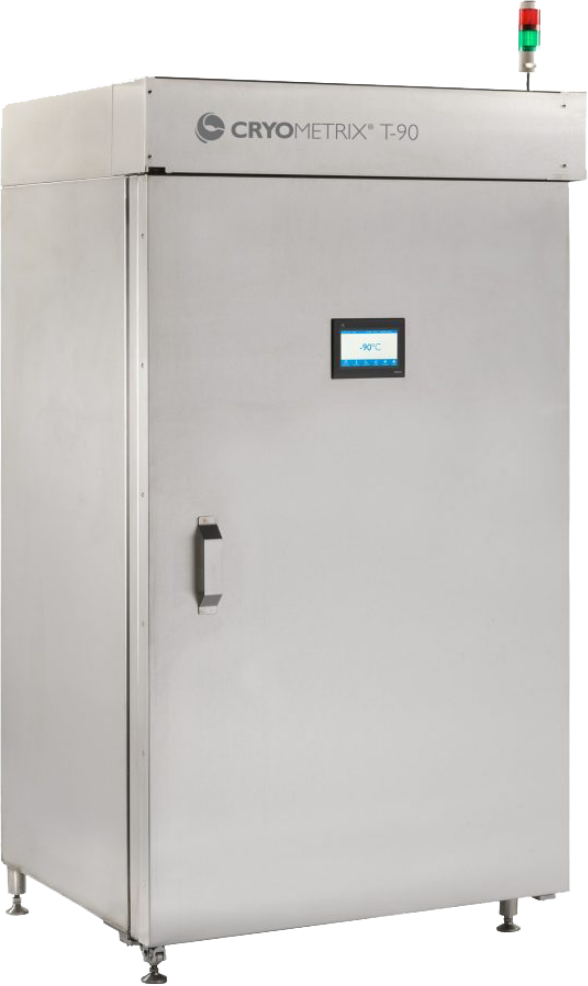

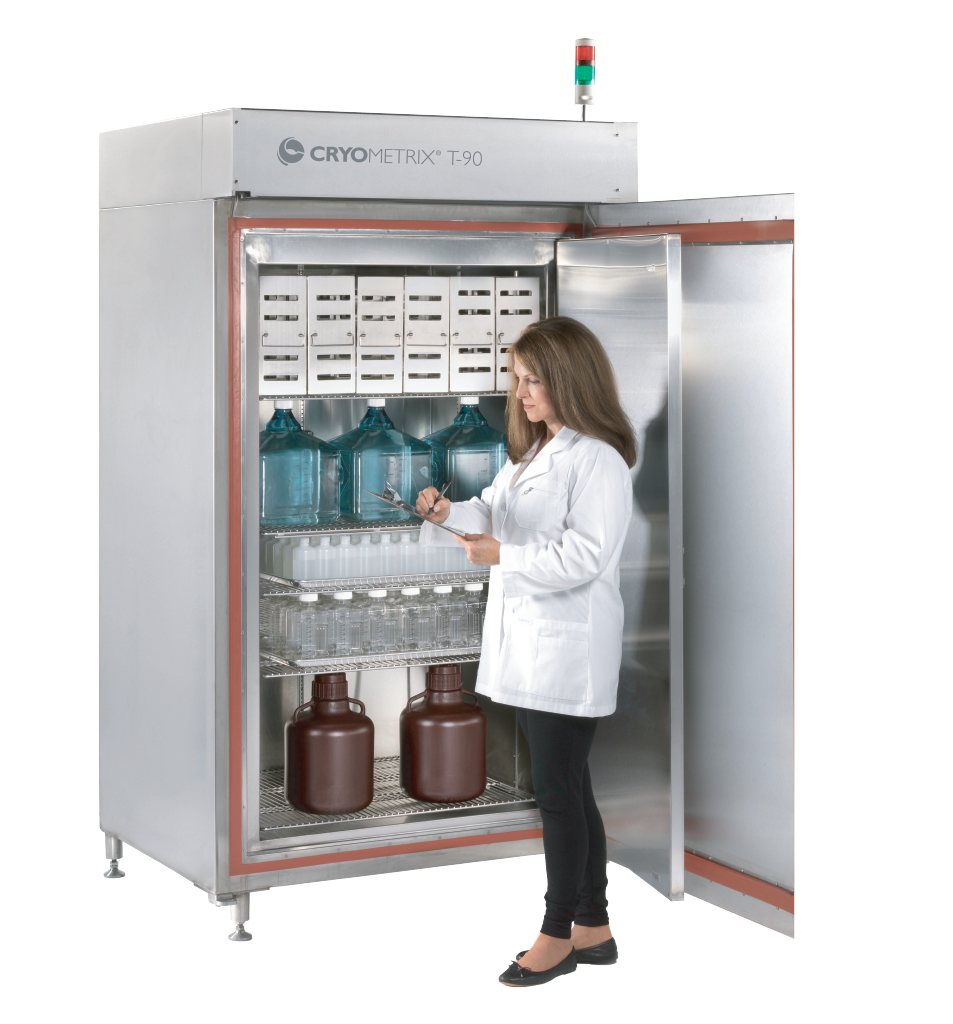

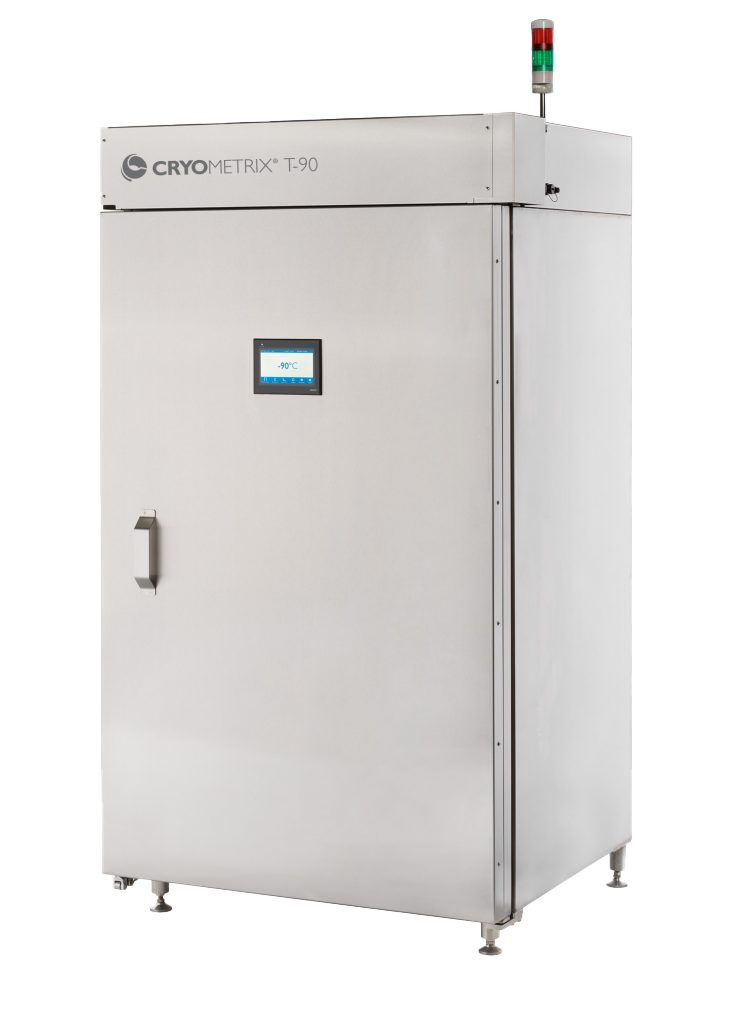

Cryometrix T-90 Storage Freezer

Revolutionizing Ultra-Low Temperature Storage with Advanced Liquid Nitrogen Technology

The Cryometrix T-90 Storage Freezer is a breakthrough in cryopreservation technology, engineered to provide laboratories and research facilities with a smarter, safer, and more sustainable alternative to traditional mechanical ultra-low temperature (ULT) freezers. Through a patented closed-loop liquid nitrogen (LN2) system, the T-90 delivers precise temperature control, reduced energy usage, and long-term reliability—all without compressors or harmful refrigerants.

Designed for the critical preservation of biological samples, vaccines, cell lines, and more, the T-90 freezer is trusted by professionals in life sciences, biotech, healthcare, and academic research.

Advanced Cryogenic Cooling with Liquid Nitrogen

Unlike traditional ULT freezers that rely on mechanical compressors and chemical refrigerants, the Cryometrix T-90 uses the natural properties of liquid nitrogen to provide ultra-low temperatures. LN2 has a boiling point of -196°C, enabling rapid, efficient cooling without the complications of compressor failure, oil leaks, or high power consumption.

Key Benefits of LN2 Technology:

  • Achieves ultra-low temperatures quickly and reliably
  • No moving compressor parts—minimal maintenance
  • No refrigerants, oils, or ozone-depleting chemicals
  • Quiet operation without vibration or mechanical noise
  • No heat exhaust to the room—reduces facility HVAC load

The Cryometrix T-90 offers high-performance cooling with low operational overhead, making it a sustainable choice for long-term cryogenic storage.

Performance Specifications and Capabilities

The Cryometrix T-90 is designed to maintain precise temperatures under heavy use. Its closed LN2 system ensures fast cool-down, consistent performance, and reliable operation even in demanding conditions.

Core Performance Metrics:

  • Temperature Range: +20°C to -90°C
  • Uniformity: ±3°C across all zones
  • Recovery Time: Less than 10 minutes after a 3-minute door-open event
  • Pull-Down Time: Reaches -80°C in 45 minutes from ambient
  • LN2 Usage: Approximately 0.75 gallons per hour at setpoint

These specifications ensure that your samples remain safely stored without fluctuations or degradation, even during frequent access or temporary power interruptions.

Built to Last: Long-Term Reliability

Traditional ULT freezers tend to require significant maintenance and often fail after five to seven years due to compressor wear. The Cryometrix T-90 offers a fundamentally different model, using a system with virtually no moving parts and fewer components prone to wear.

Longevity and Service:

  • 20-Year Warranty on the cooling system—the longest in the industry
  • Minimal Maintenance – No compressor, refrigerant, or oil systems to maintain
  • Built-In Redundancy – Includes backup LN2 valves and emergency operation controls
  • Virtual Technical Support and valve replacement included under warranty

This makes the T-90 ideal for mission-critical storage where long-term dependability is a must.

Sample Capacity and Configurability

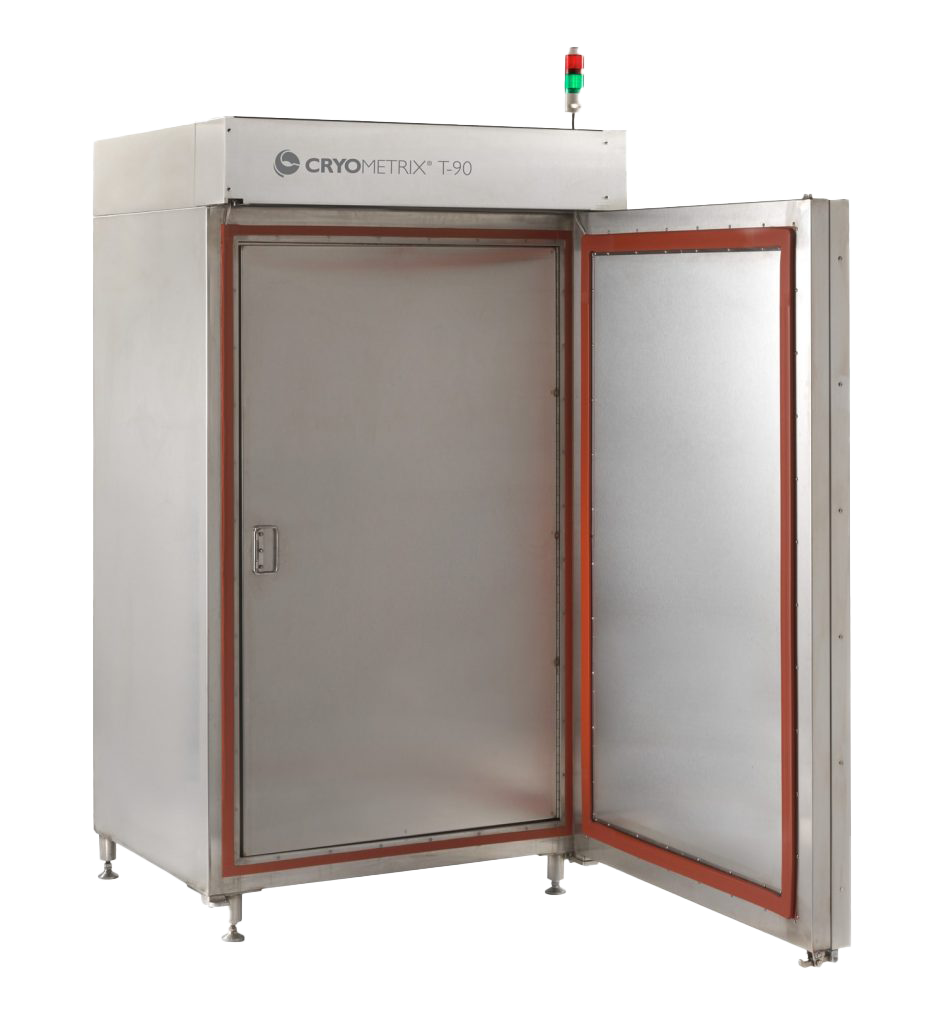

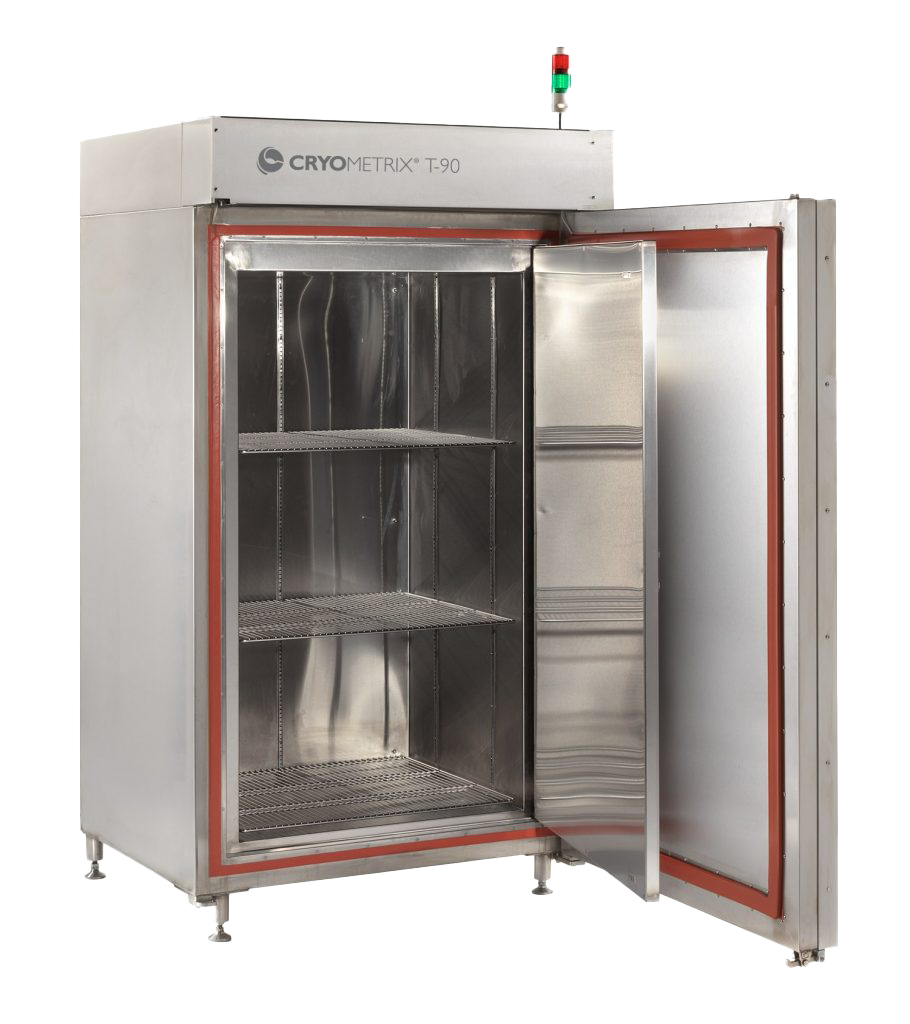

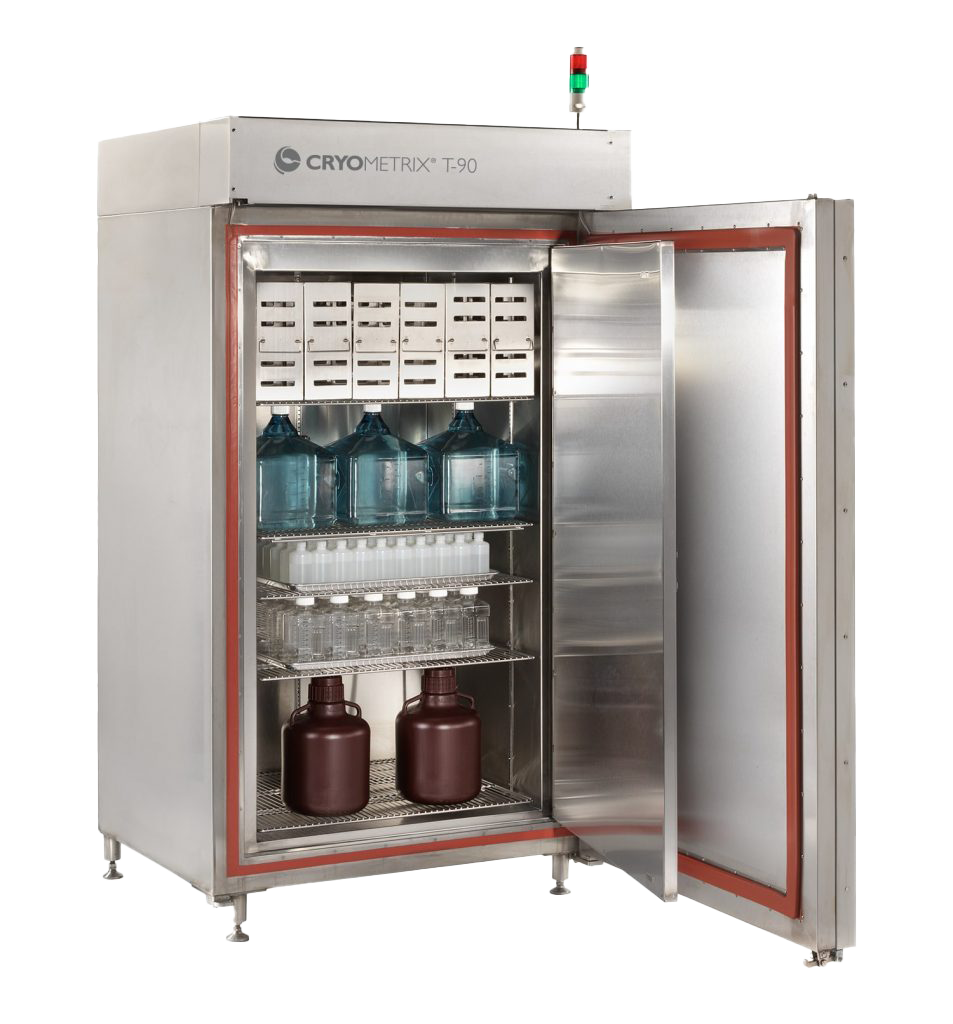

The upright design of the T-90 maximizes capacity while offering convenient access to stored materials. Its customizable shelving supports a wide range of vial sizes and lab workflows.

Capacity Details:

  • Internal Volume: 950 liters / 33.5 cubic feet
  • Sample Storage: Up to 72,000 vials (1.2–2 mL)
  • Shelving: Adjustable every 0.5 inches; supports 6 racks per shelf and 5 boxes deep

Design Advantages:

  • Ergonomic upright design allows for fast, easy sample access
  • Reduces exposure to warm air during retrieval
  • Supports high-density storage for biorepositories, blood banks, and research labs

Smart Controls and Monitoring

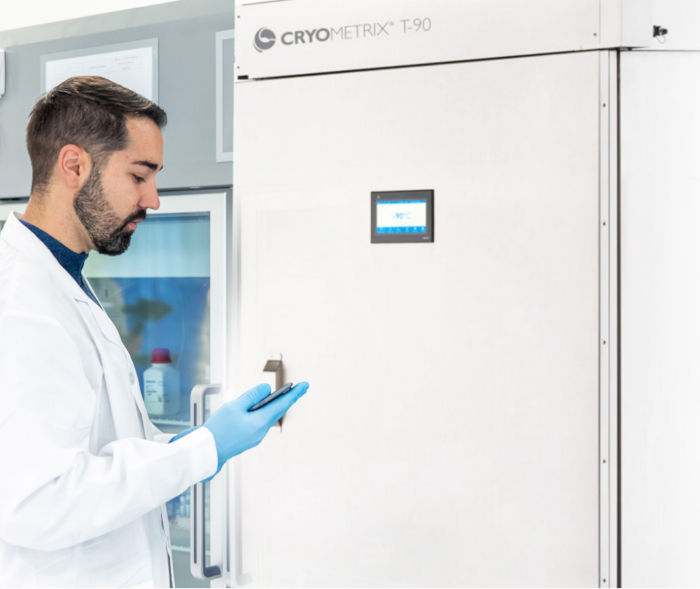

The T-90 incorporates intuitive, advanced controls for facility operators and researchers. A 7- inch touchscreen LCD enables precise temperature management, access control, and data tracking.

Key Interface Features:

  • Touchscreen LCD Display: Simple, fast user interface.
  • User Management: Supports up to 100 individual users with three access levels.
  • Setpoint and Access Security: Customize permissions by role.
  • Onboard Datalogging: Manual CSV export for compliance and audits.
  • 21 CFR Part 11 Compliance Package (Optional): Enables FDA-compliant recordkeeping and electronic signatures.

This ensures full traceability of events, temperatures, alarms, and user actions, making the T-90 well-suited for regulated environments.

Energy Efficiency and Environmental Responsibility

One of the most significant advantages of the Cryometrix T-90 is its extremely low energy usage. Unlike traditional freezers that consume thousands of watts and release excess heat into lab environments, the T-90 uses LN2 pressure to maintain temperature.

Sustainability Features:

  • Energy Consumption: Up to 90% lower than mechanical systems
  • No HVAC Burden: Zero heat exhaust into the room
  • Silent Operation: No mechanical noise
  • Eco-Friendly Cooling: Nitrogen emissions are clean and naturally occurring
  • No Chemical Refrigerants: CFC-free, no freon or oils involved

These features not only reduce operational costs but also contribute to cleaner lab environments and reduced carbon footprints.

Safety and Redundancy

The T-90 freezer is built to protect both users and contents in every scenario, including power failures or lab emergencies. Its sealed LN2 system prevents exposure to cryogens while ensuring continued operation in worst-case scenarios.

Built-In Safety Systems:

  • Closed LN2 System: No direct exposure to operators or samples
  • Emergency Manual Valve: Keeps unit operational during power loss
  • Dual LN2 Inlets: Redundancy for continuous cooling
  • No Flammable or Toxic Chemicals: Inert nitrogen-based system

This is a key advantage for facilities prioritizing operator safety, sample integrity, and uninterrupted uptime.

Specifications Overview

Versatility for Multiple Industries

The T-90 freezer is used across a wide range of scientific, clinical, and industrial applications. Its adaptable design, low energy footprint, and data integrity make it an excellent fit for regulated and high-throughput environments.

Common Use Cases:

  • Biotech and Pharmaceutical Manufacturing
  • Clinical Research and Diagnostics
  • Stem Cell and Cell Therapy Storage
  • Vaccine Preservation and Distribution
  • Government and Academic Research Facilities
  • Biobanks and Genetic Repositories

Whether you are storing high-value clinical trial samples or long-term genetic archives, the Cryometrix T-90 provides the confidence and performance you need.

Easy Installation and Expandability

The T-90 is designed for simple integration into existing labs and facilities. It requires no specialized ventilation or high amperage circuits and can be installed close to walls or side-by- side with other units.

Installation Highlights:

Requires minimal clearance

No external exhaust or ventilation needed

Standard plug configurations available

Stackable with additional units—no HVAC impact

Plug-and-play configuration for fast startup

Facilities can scale their storage capacity without requiring electrical infrastructure upgrades.

Compliance and Manufacturing Standards

Cryometrix T-90 freezers are manufactured in the United States to the highest quality control standards. Each unit is designed to meet or exceed international compliance regulations for electrical safety and clean operation.

Certifications:

  • CE Mark – Compliant Construction
  • FDA-Ready – Optional 21 CFR Part 11 support
  • Designed and Assembled in the USA

These credentials make the T-90 ideal for environments subject to stringent regulatory requirements, such as GMP-certified facilities and federally funded research labs.

Why Choose the Cryometrix T-90?

The Cryometrix T-90 Storage Freezer is engineered to deliver best-in-class cryogenic performance, operational efficiency, and reliability.

  • Precision LN2 cooling with rapid temperature recovery
  • 20-year cooling system warranty for long-term value
  • 90% less energy consumption compared to mechanical ULT freezers
  • No refrigerants, oils, or toxic chemicals
  • Complete user and data control with touchscreen interface
  • Robust safety systems and emergency readiness
  • Built for scalability and low maintenance
  • Designed and manufactured in the USA

T-90 BLAST FREEZER

Features

Access / Setpoint Security:
– 3 Standard User Security Levels
– Up to 100 Individual Users
(configure control to set point, access, and other advanced security settings)
On-Board Datalogging
– Standard
– Manual CSV export available of trend data
Backup Systems (Optional)
– up to 3 hours
Doors
– 1 Outer, 1 Inner
HMI Display
– 7″ Touchscreen LCD
Warranty
– 20 Years, Cooling System for Parts Virtual technical support; (Includes Control Valve Replacment)

Performance

Exterior

Payload Bay Dimensions

Electrical

LN2 System

Certifications
