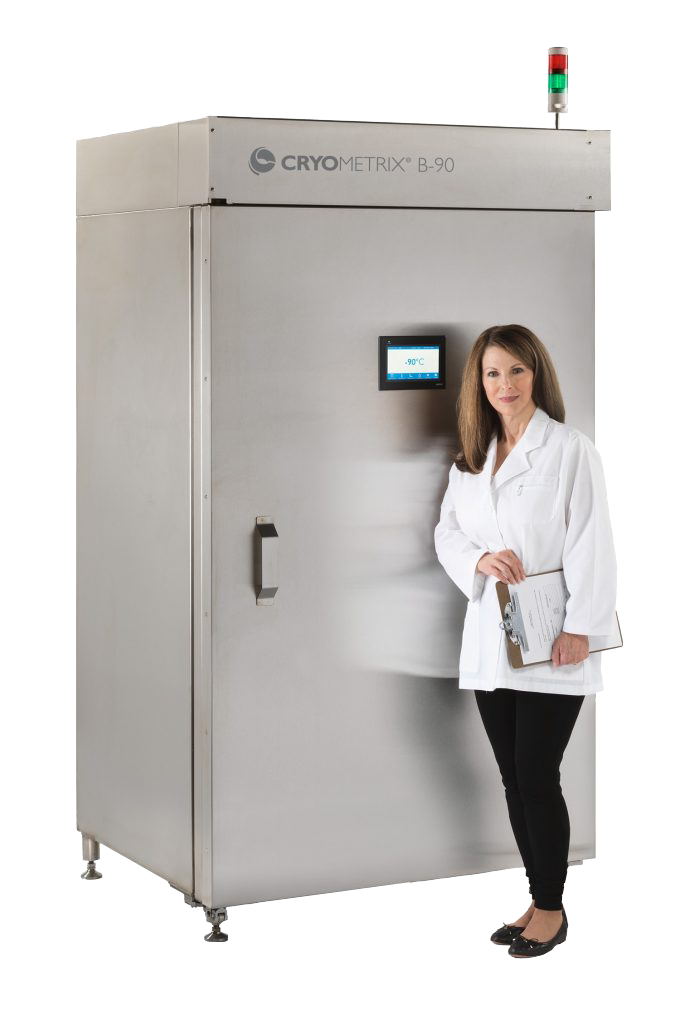

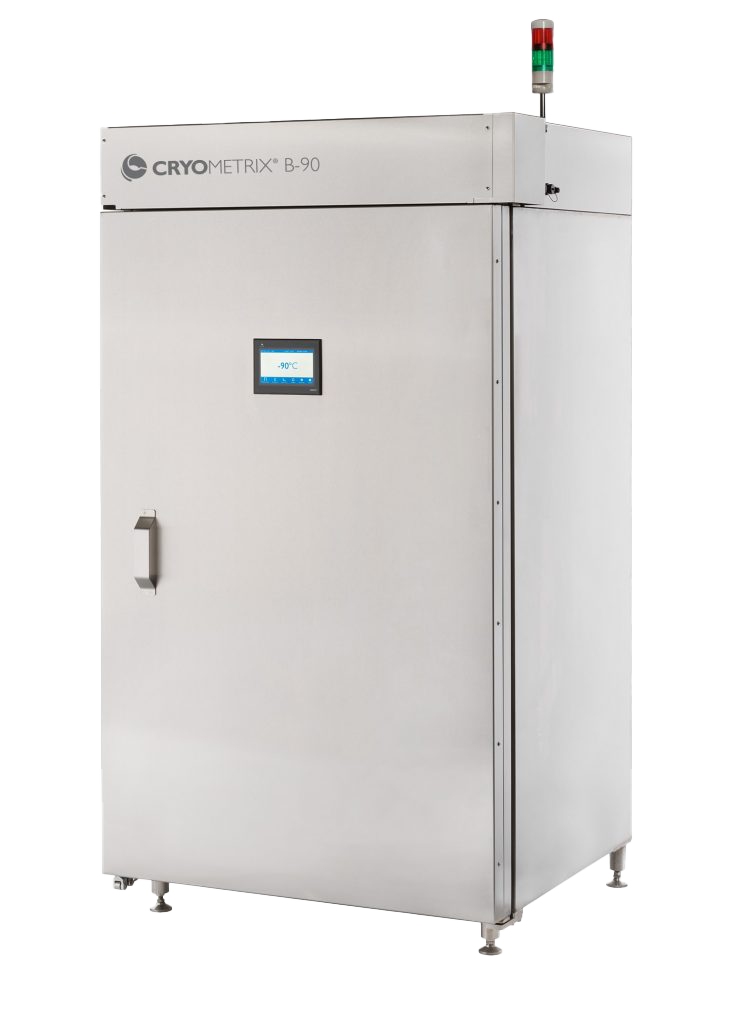

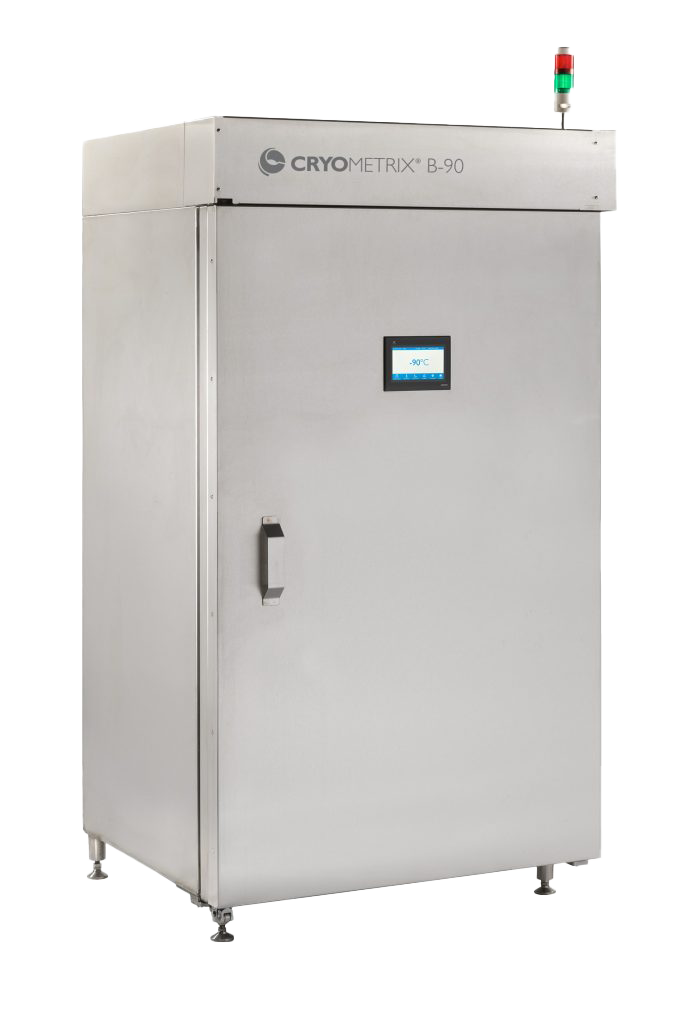

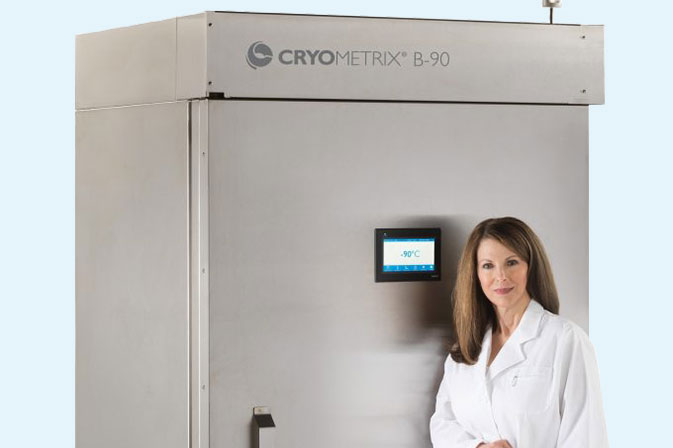

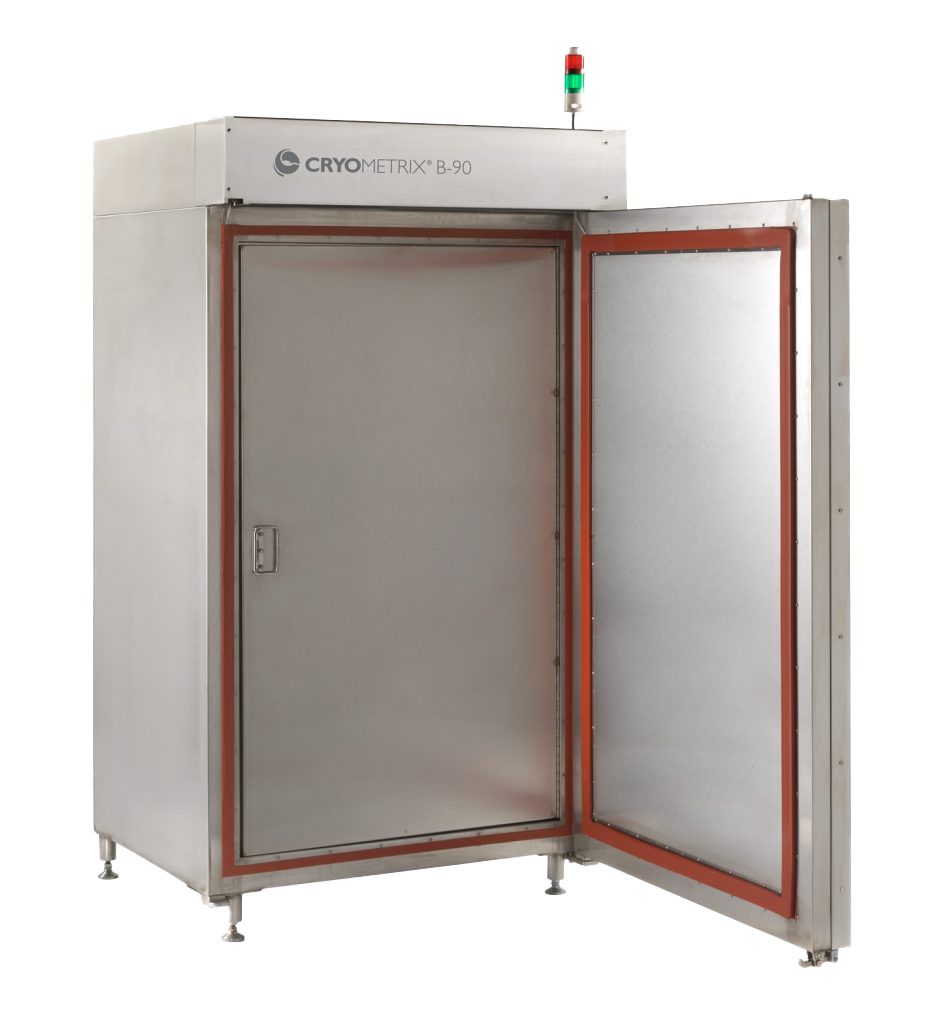

Cryometrix B-90 Blast/Thaw Freezer
Blast freeze your products faster than you ever imagined possible.
Increase your throughput by more than 800% with the Cryometrix B-90.
The Cryometrix B-90 freezer features a patented cryogenic blast freezing/thawing technology to achieve accurate, ultra-low temperatures in a fraction of the time that a mechanical freezer would take. The B-90 blast freezer can cool the payload bay from 20°C to -90°C in 10 minutes.
In 2016, the B-90 was validated by a large American blood bank and it increased their throughput by eight times! They replaced two large mechanical blast freezers (along with a large roof-top compressor) with just one Cryometrix B-90.
By eliminating the need for a compressor, the Cryometrix B-90 dramatically reduces maintenance costs due to the simple design that has very few moving parts. The liquid nitrogen cooling is all self-contained, so there is no exposure to the user or the products.
The B-90 features state-of-the-art temperature and data logging which can be easily accessed through the touch screen or downloaded to your computer. With up to 30 users and 3 security levels, you can easily control who can open the freezer, change the setpoint, and make adjustments to the settings.
Blast freeze and thaw your products with ease:
- Temperature adjustable from +40°C to -90°C
- Temperature uniformity ± 3°C throughout
- Built in thawing capabilities
- Built-in data logging with up to 30 users
- 100% stainless steel construction
- 20-year warranty on cooling system
- Optional battery backup
- Emergency LN2 valve (no direct LN2 exposure)
| Physical Property | Metric | Imperial |
|---|---|---|
| Dimensions (Depth x Width x Height) | 1062 mm x 1224 mm x 2126 mm | 41.8″ x 48.2″ x 83.7″ |
| Weight | 738 kg | 1626 lbs. |
| Payload Capacity | 700 L | 24.7 ft3 |
| 2mL Vial Capacity | 48,000 | 48,000 |
| Payload Dimensions (Depth x Width x Height) | 578 mm x 800 mm x 1524 mm | 22.76″ x 31.5″ x 60″ |
| Electrical | 208 – 240 VAC | 120 VAC, 60 Hz |
| LN2 Inlet Pressure | 650 – 758 kPa | 90 – 125 PSI |
| Adjustable Set Point | 20°C to -90°C | 68°F to -130°F |
| Temperature Uniformity | 3°C ± at -90°C | 5°F ± at -130°F |
| Cool Down Time 20°C to -80°C | 7 min | 7 min |
B-90 Blast
3 Standard User Security Levels
*Additional User Levels availible with IPC upgrade
Up to 100 Individual Users
*Unlimited Users availible with IPC upgrade
Standard
Manual CSV export of data logging
up to 3 hours
1 Outer, 1 Inner
20 Years, Cooling System for Parts
Virtual technical support;
(Includes Control Valve Replacment)
40°C to -90°C
4°C ±
1 minutes
10 minutes
~1.5 gal of LN2 per minute
304 Stainless Steel
1062 millimeters / 41.8 inches
1224 millimeters / 48.2 inches
2388 millimeters / 94.0 inches
738 kilograms / 1626 pounds
304 Stainless Steel
578 millimeters / 22.76 inches
800 millimeters / 31.5 inches
1524 millimeters / 60 inches
700 liters / 24.7 cubic feet
48 Bottles
120V – 220V
60 Hz
NEMA 5-20
`12 A
100 – 125 psi
CGA 295 Male Fitting
UL 508a
CE compliant
*Optional- 21 CFR Part 11 Compliance package
Designed and Manufactured in the USA
For More Information or To Purchase
Contact Us Today

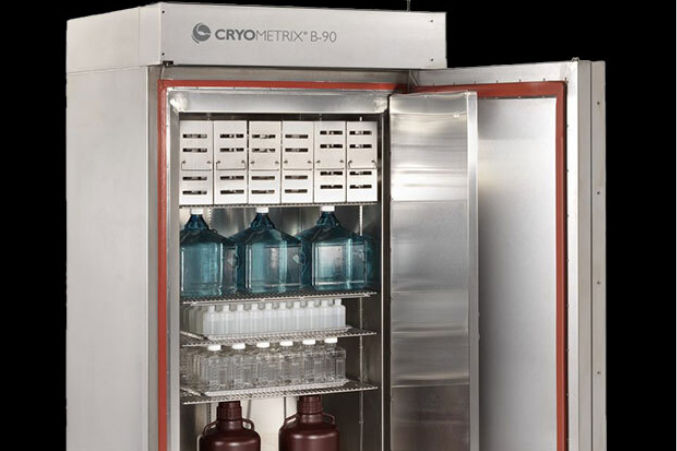

Consider the many advantages of a Cryometrix B-90 Blast freezer
Enjoy the efficiency of easy-to-reach samples with reliable blast freezing and thawing.
The Cryometrix B-90 freezer offers valuable benefits for everyone involved in your freezing processes. Lab personnel get the time-saving convenience of upright storage and easy access, while your overall freezing process gains efficiencies which will greatly increase your throughput and lower your production time. Contact us to receive data for blast freezing times for your specific application. We can help you configure the best setup in order to get you the most throughput.
liquid nitrogen freezing
- Minimizes service interruptions/downtime
- Uses up to 90% less energy than mechanical units
- Fastest freeze times in the industry
- Reduces need for maintenance or repairs when compared to mechanical freezers
- No HVAC required
- No refrigerant chemicals, oils, or CFCs
- Completely silent operation
steel interior & exterior
- Fast, convenient access to stored materials
- Easy cleaning and sterilization

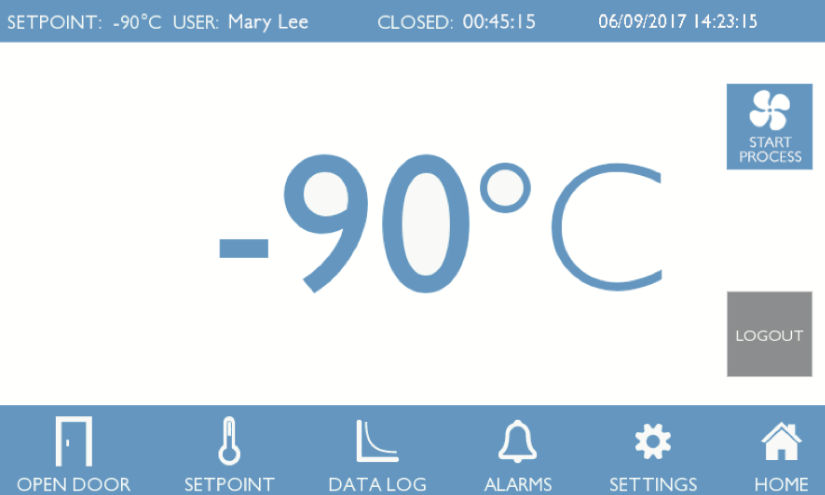

controls with touchscreen
interface
- Simplifies management, monitoring freezing processes and user operation logging
- Easy thawing setup so you can warm your product to temperatures up to 40°C
- Redundant LN2 valves ensure further reliability
- Downloadable Temperature, Alarm, & User Log
Exterior Dimensions
- Height 86 in. x depth 42 in. x width 48 in.
- Can be placed against wall, no ventilation space needed
- Less than 6″ of space required between units to allow for door swing

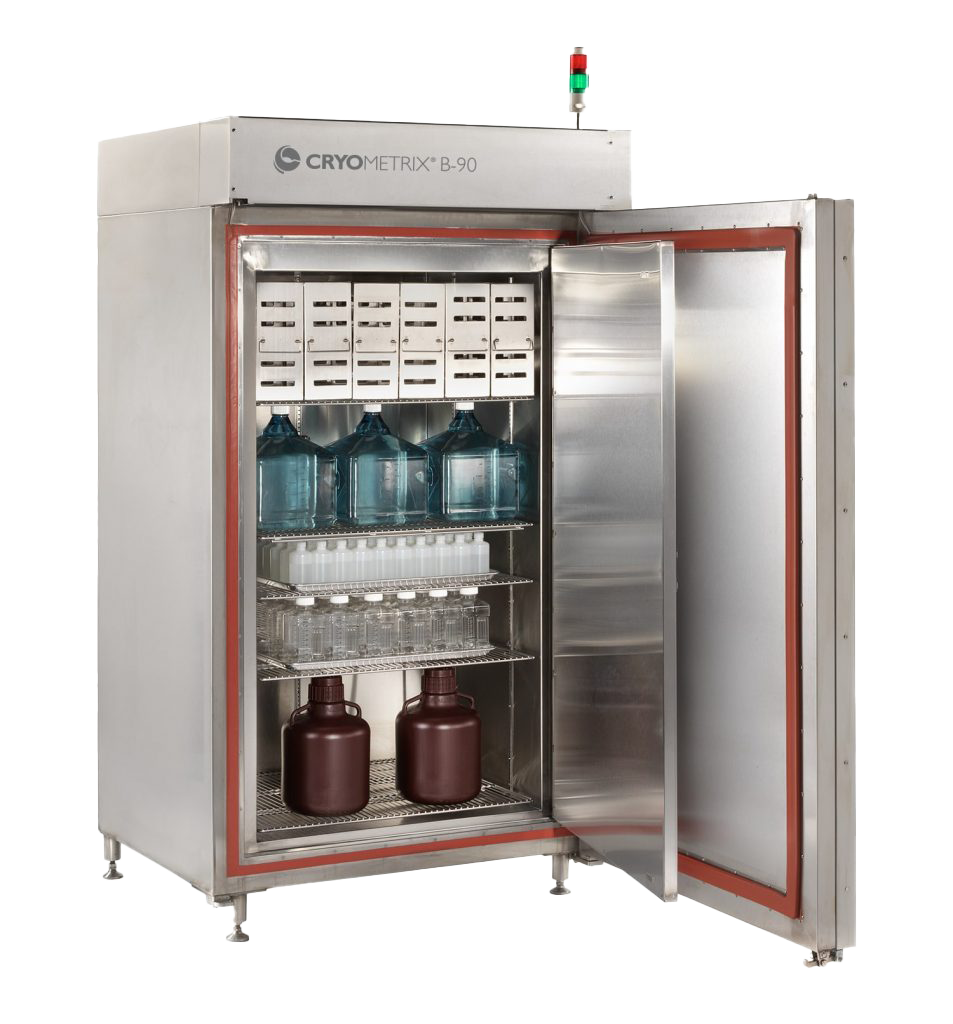

Capacity
- Payload Bay: Height 60 in. x depth 23.75 in. x width 31.5 in.
- 26 cubic feet interior capacity

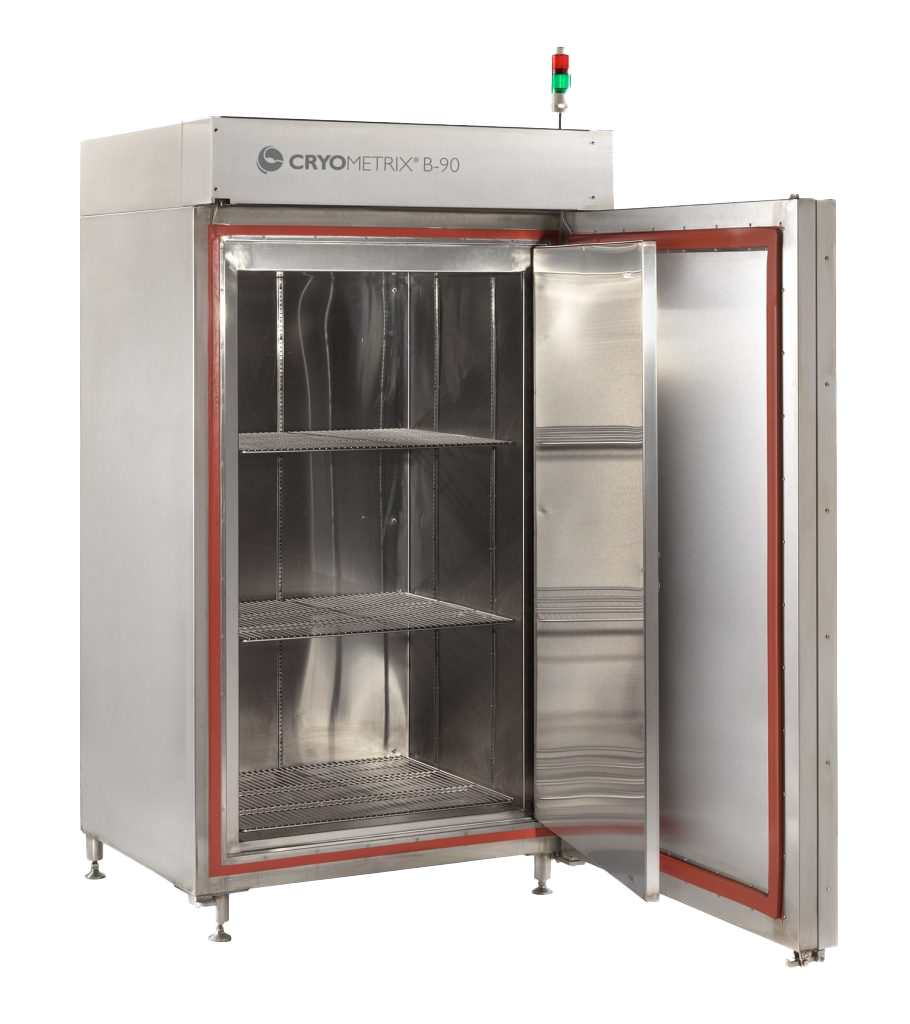

- Custom shelving* configuration adjustable every 0.5”
*B-90 comes standard with 3 shelves
For More Information or To Purchase
Contact Us Today
Powerful Innovation
Next-Gen Liquid Nitrogen Tech: Cryometrix freezers don’t use traditional mechanical compressors. Mechanical compressors utilize refrigerants, an example being freon, to produce cold temperatures. These are noisy and use large amounts of electricity.
Low Energy Usage
- Cryometrix freezers use 7x less electricity than comparable lab freezers.
- LN2 operates on pressure and requires no electricity to function, enabling it to function without power in an emergency situation.
Extreme Reliability
- Cryometrix freezers don’t require HVAC systems to cool the ambient temperature in order to operate. They can operate in any ambiance, and actually cool the environment around it.
- There are practically no moving parts on Cryometrix freezers, making them last up to 4 times as long as comparable lab freezers with hardly any maintenance.
Easily Expandable
- Cryometrix freezers consume little electricity, enabling the customer to add units to their facility with zero electrical complications.
- The effective footprint is below 8 square feet and little to no space is needed on the sides, easily fitting into any facility.
Extreme Versatility
- Many blast freezers use metal plates to freeze product, severely limiting their use to thin and flat objects. Others inject LN2 directly into the payload bay, risking harmful exposure to the product.
- The B-90 Blast Freezer uses liquid nitrogen in an efficient and powerful manner, allowing it to blast freeze anything that can fit inside it.
20 Year Warranty: Cryometrix freezers automatically come with a 20-year warranty on their cooling systems.
Environment Friendly
Clean Emissions: Cryometrix freezers only emit nitrogen outside your building, which already makes up over 75% of the Earth’s atmosphere.
Long-Lasting: The cooling system of Cryometrix freezers are built to last 20 years, with a warranty to cover it.
Cost Efficient
Space Efficient: Cryometrix freezers have the smallest footprint for freezing volume, costing less in floor space and allowing you to fit more units in your current space.
Simple Design: The upright design allows for quick and convenient access, reducing labor costs and risks.
Low Energy Costs
- LN2 technology uses much less electricity than traditional compressor-based technologies.
- Cryometrix freezers don’t need energy intensive HVAC systems to operate efficiently.
Greater Throughput: The increased capability of Cryometrix freezers allows faster turnaround times and thus greater profits.
Complete Safety
Closed Nitrogen System
- There is zero contact between LN2 and the operator or product.
- LN2 storage is simple and completely autonomous.
Unreactive: Nitrogen isn’t flammable or explosive like many refrigerants used in compressor-based technologies.
Easy Cleaning: The 100% stainless steel interior/exterior of the freezer is easy to clean without harsh industrial chemicals.
Sample Integrity
Self-contained System: No LN2 is exposed to the sample, maintaining the samples integrity.
Data-Logging: Cryometrix freezers automatically track temperature and other useful data.
Emergency Valve: Cryometrix freezers have redundant manual valves that can be used during a power outage to maintain the temperature in the payload bay.
Temperature Uniformity: Multiple fans create a high flux of airflow to maintain uniform temperature within the payload bay.
